Model
Quick Connect
#filament
#ptfetube
#ptfe
#tube
#bowden
#connector
#schlauch
#schnellkupplung
#quickconnect
#schlauchverbinder
#ecas04
#ecas
#ams
#filamentpath
Description

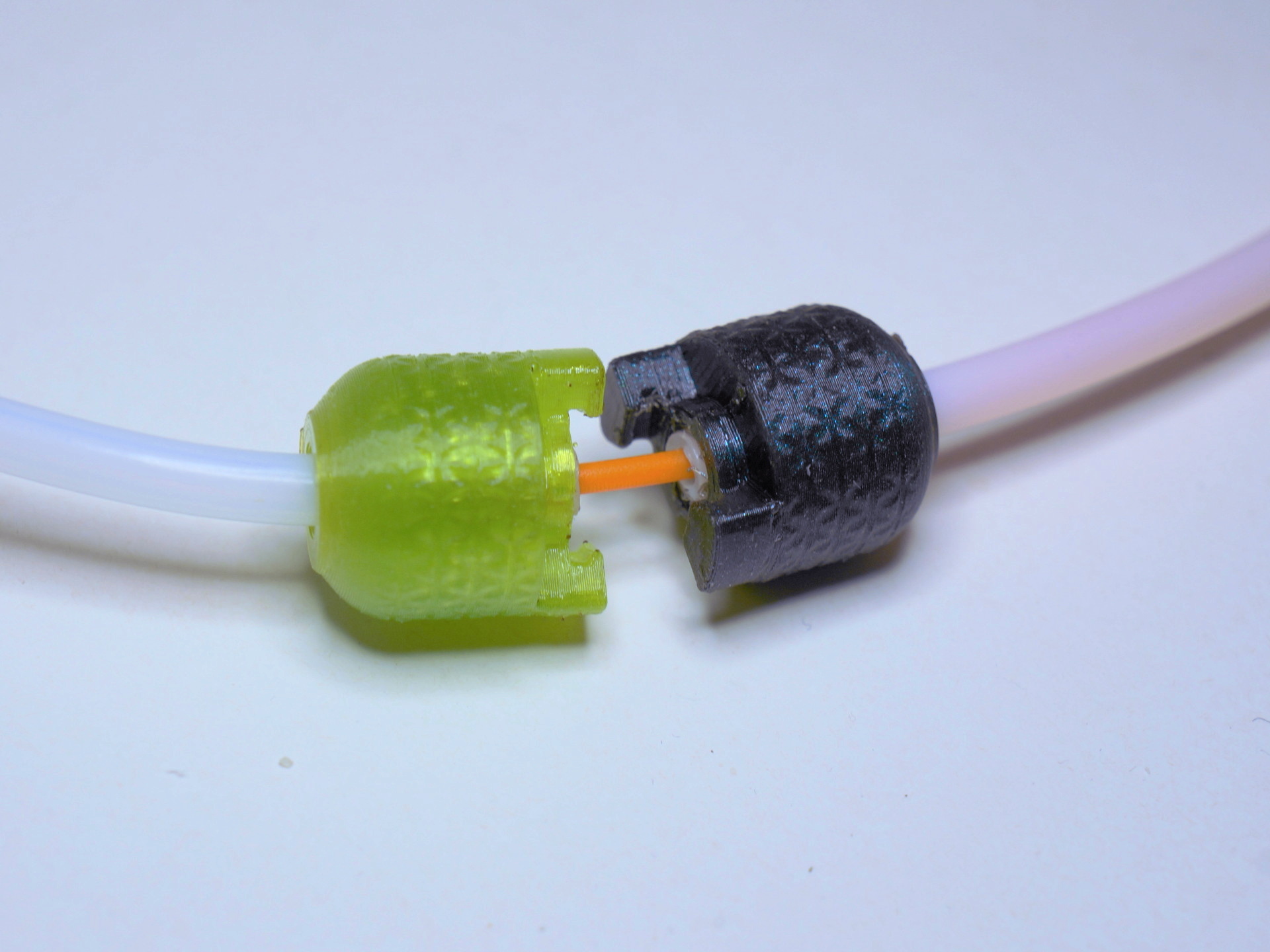

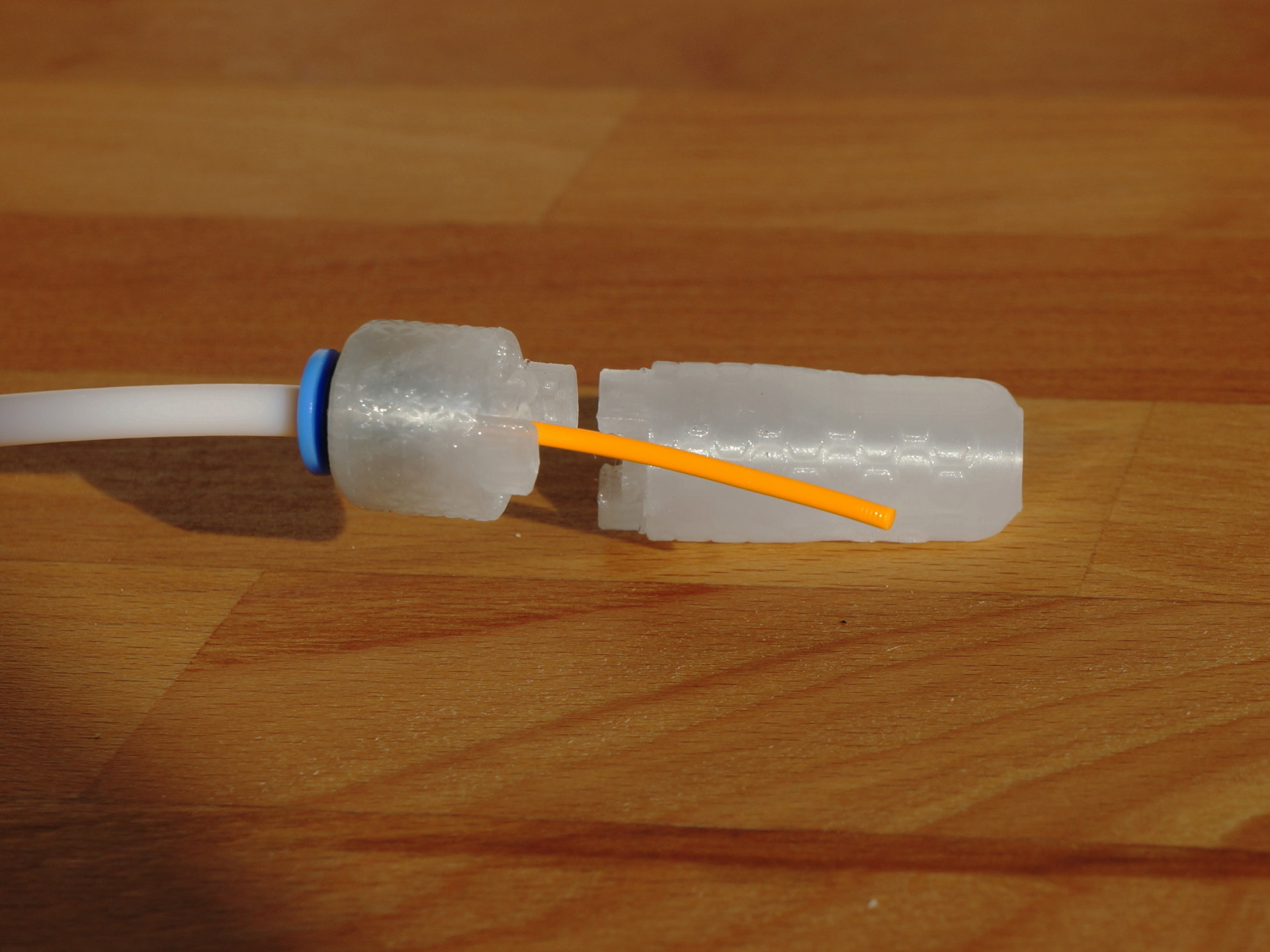

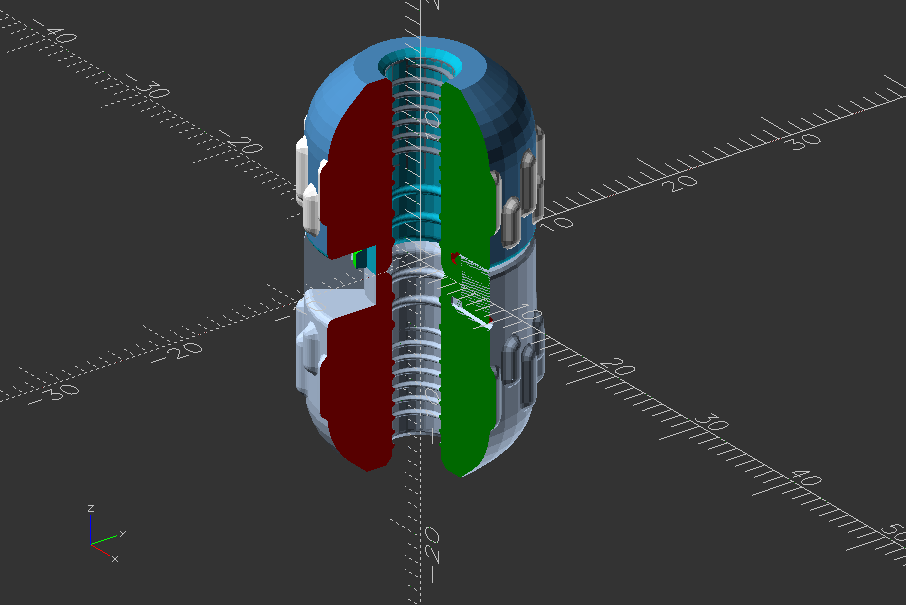

Design This quick connector features a supporting thread to ease the press in process of the PTFE tube.

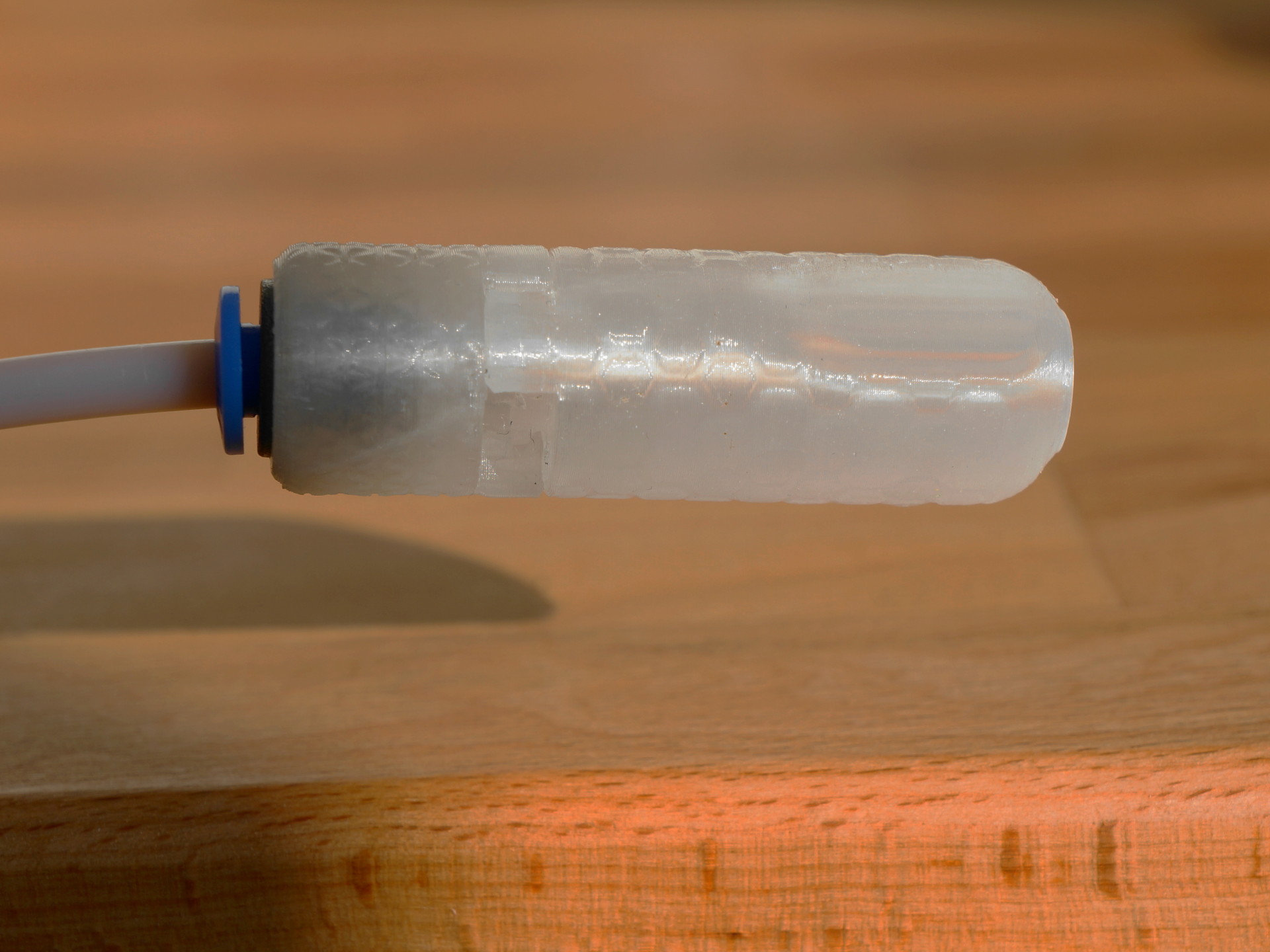

The tube will be hold in place by the 2 holding rings on top.
Assembly Put some painters tape around the tube (leave >2cm free) to get a better grip.
- start screwing 10mm in.
- wait for 5min so the PTFE will deform and adapt the thread.
- screw into final position by pressing and screwing until a tiny end protrudes.
- press the protruding rim outwards by putting in some filament and bending out wiggling around to ensure smooth passage.
remove the tape and let it rest a day.
If you need a more secure connection you can add a drop superglue (CA) from the bottom - it will soak the thread and increase the form fit but keep in mind PTFE can't be glued.
