Model
LUCKY 13 Printable Jointed Figure
#toy
#display
#modular
#figure
#articulated
#customizable
#snapfit
#poseable
#actionfigure
#balljoint
#jointed
Description
Lucky 13 is now on a CC BY 4.0 license! This means that you are free to share these files however you like, including selling prints, provided that you give proper attribution. You can give proper attribution by including this notice on your product page:
LUCKY 13 Printable Jointed Figure © 2022 by Lucky 13 Toys is licensed under CC BY 4.0 Please help me build my identity as a creator by referring to this design by its original name. Don't pass off my work as your own product.
If this free model brought you joy (or profit), consider making a donation: PayPal | Stripe | Buy Me a Coffee
--
Did you know there's a whole Lucky 13 family? And that the other models are probably easier to print and assemble than this one? :)
--
Lucky 13 is a fully 3D printable, highly poseable, snap-together, modular, customizable, jointed figure. This starter set features everything you need to start printing, playing, and making it your own. The included STL files give you access to:
- A core armature with lifelike articulation!
- A basic skin that easily snap-fits for customization!
- A set of accessories for extra inspiration!

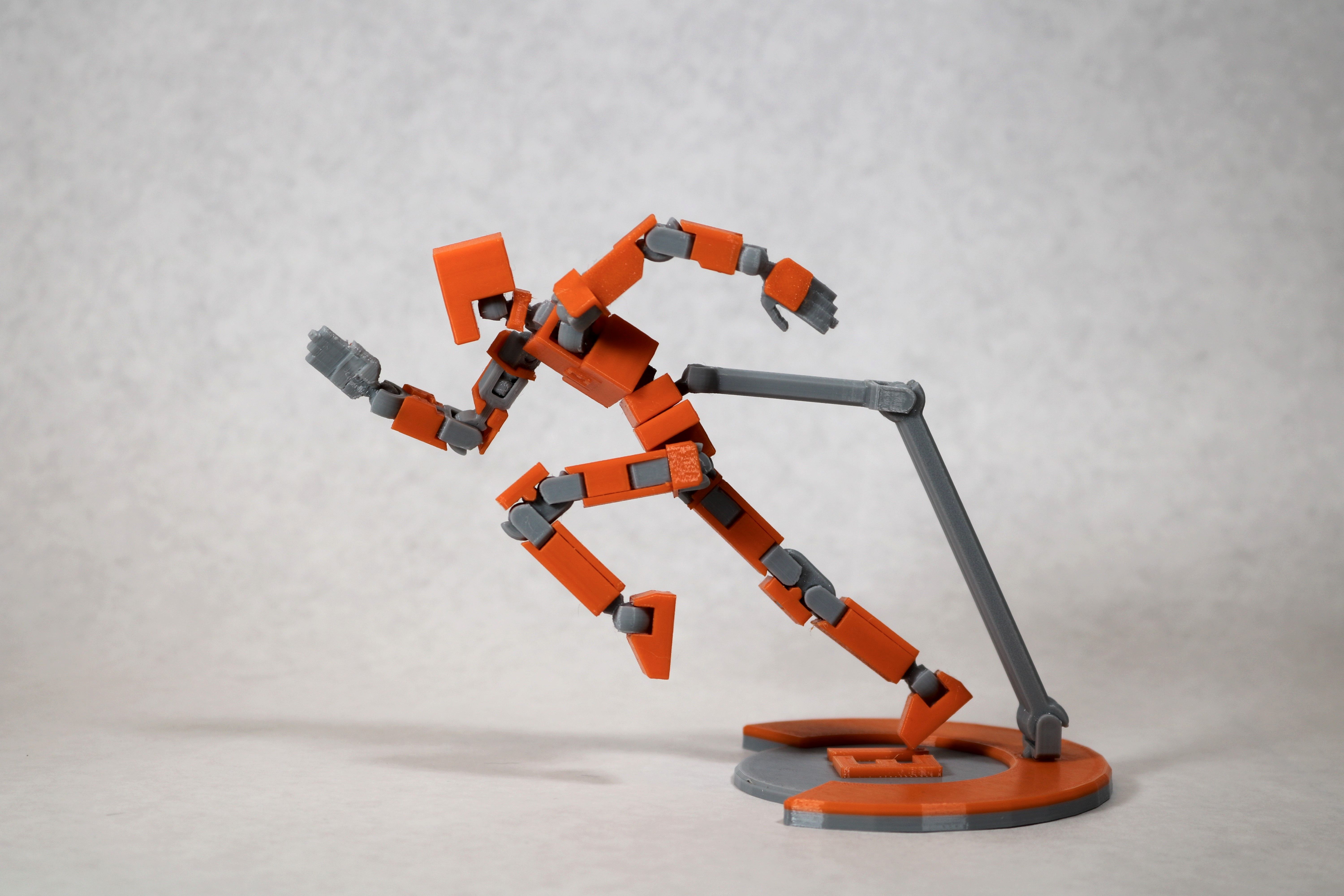

- A display base to show off your figure in extra-dynamic poses!
Make sure you grab the PDF manual from the files! I hope you’ll have as much fun with Lucky 13 as I have!
Print details:
- Material: PETG
- Layer height: 0.15mm
- Supports: no
- Infill: 15%
All sample images are printed on a Prusa MK3S and/or Prusa MINI.
Note 1: Some file names were changed slightly in the upload, but you should still be able to follow the manual. When I say “armature parts,” I mean parts that say “armature” in their filename, and so on.
Note 2: I've added one pre-sliced gcode file to be able to display print time estimates. However, I strongly recommend that you your own slicing. You're not allowed to get mad at me if you just stick that file on an SD card and it doesn't work perfectly.

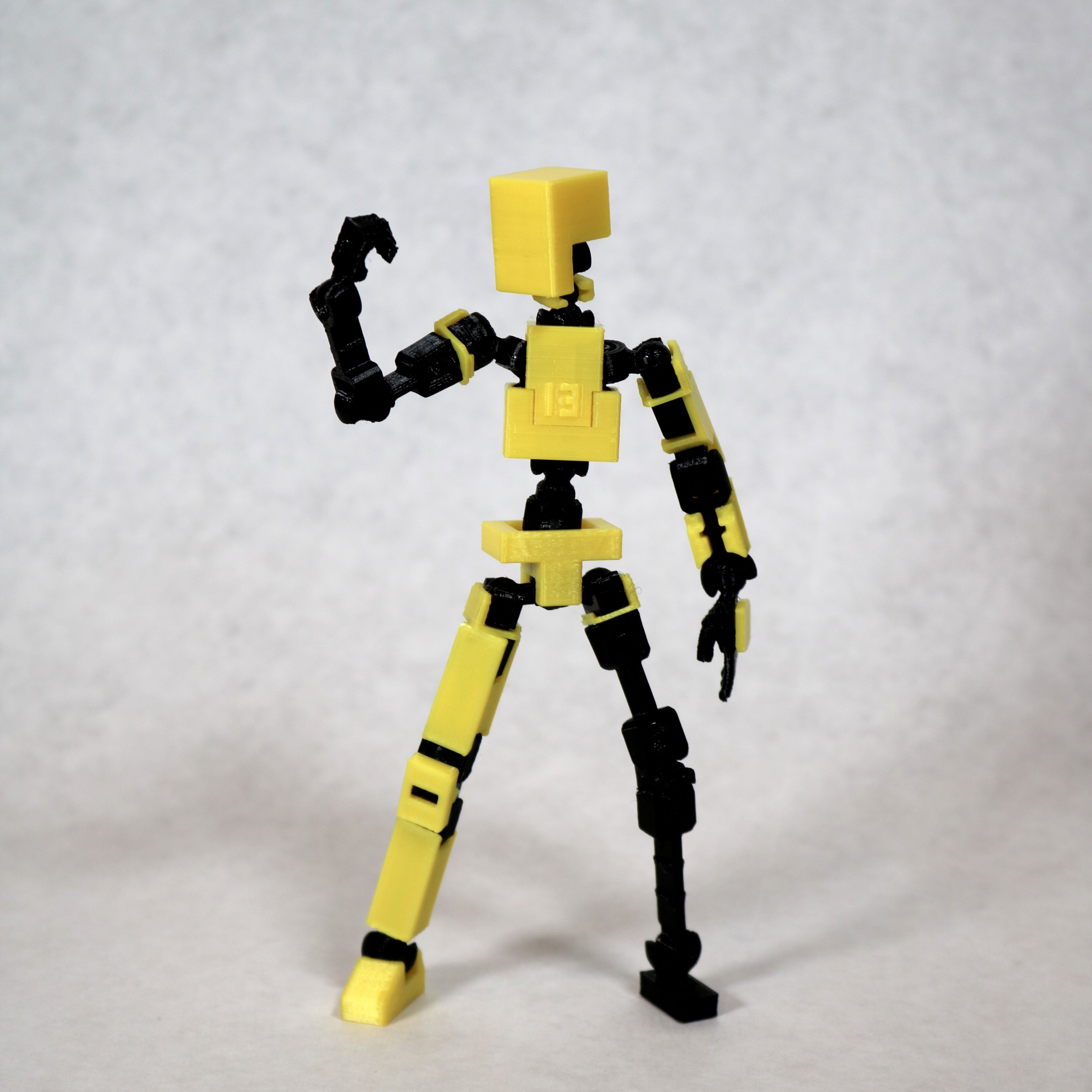

Note 3: The “A16” parts are only needed if you want to assemble just the armature without the skin, like in the first picture. They attach to the foot joints. The next release will have that called out in the manual.
If you like this print, consider sending me a tip to support developing the next version :)
Change log:
10 Mar 2022: Fixed some manifold errors, updated file organization for better clarity.
11 Mar 2022: Uploaded new versions of parts 00A08 and 00A11 with added chamfer for ease of assembly. Uploaded new versions of parts 00B08L/R, 00B12, 00B13, 00B15, 00B16 with increased tolerances. Updated plated part files to match new individual part versions.
1 Apr 2022: Added a gcode file to display print time estimates. However, I still strongly recommend that you do your own slicing.
27 Feb 2024: Changed to CC BY 4.0 license
License
Files
Model files
Download all files
00C01 accessory sword.stl
00C02 accessory staff.stl
00C03 accessory flag.stl
00C04 accessory gun.stl
00C05 accessory hat.stl
00A01 armature head.stl
00A02 armature neck.stl
00A03 armature chest.stl
00A04 armature abdomen.stl
00A04B armature abdomen for display base.stl
00A05 armature waist.stl
00A06 armature hips.stl
00A07 [2X] armature clavicle.stl
00A08 [2X] armature shoulder.stl
00A09L armature upper arm left.stl
00A09R armature upper arm right.stl
00A10L armature forearm left.stl
00A10R armature forearm right.stl
00A11 [2X] armature glute.stl
00A12 [2X] armature thigh.stl
00A13 [2X] armature knee.stl
00A14 [2X] armature shin.stl
00A15L armature foot left.stl
00A15R armature foot right.stl
00A16 [2X] armature sole.stl
00A17L armature hand flat left.stl
00A17R armature hand flat right.stl
00A18L armature hand neutral left.stl
00A18R armature hand neutral right.stl
00A19L armature hand dynamic left.stl
00A19R armature hand dynamic right.stl
00A20L armature hand fist left.stl
00A20R armature hand fist right.stl
00A21L armature hand grip left.stl
00A21R armature hand grip right.stl
00D01 display base plate.stl
00D02 display base joint.stl
00D03 [2X] display base lower arm.stl
00D04 display base upper arm.stl
00B01 skin head.stl
00B02 skin neck.stl
00B03 skin chest 1.stl
00B04 skin chest 2.stl
00B05 skin abdomen.stl
00B05B skin abdomen for display base.stl
00B06 skin waist.stl
00B07 [2X] skin shoulder.stl
00B08L skin upper arm left.stl
00B08R skin upper arm right.stl
00B09 [2X] skin forearm.stl
00B10L [5X] skin hand left.stl
00B10R [5X] skin hand right.stl
00B11 [2X] skin glute.stl
00B12 [2X] skin thigh 1.stl
00B13 [2X] skin thigh 2.stl
00B14 [2X] skin knee.stl
00B15 [2X] skin shin 1.stl
00B16 [2X] skin shin 2.stl
00B17 [2X] skin foot.stl
[A1] armature.stl
[A2] hands.stl
[B] skin.stl
[C] accessories.stl
[D] display base.stl
