Description
⭐ Love the GEN2 system?
Support the project by joining the Jerrari Club or picking up a premium faceplate collection , it means a lot and helps fuel future designs.

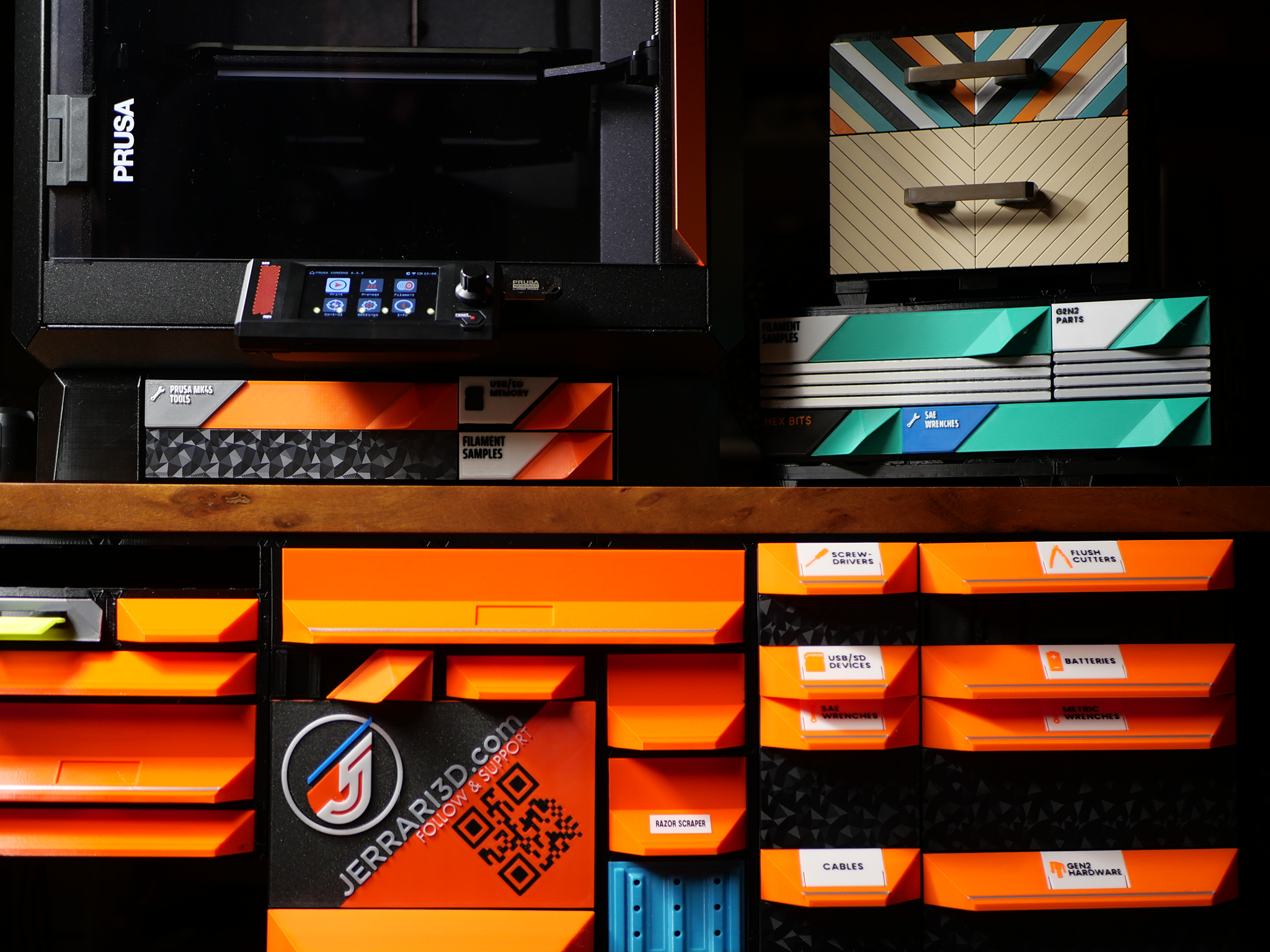

JERRARI3D.com The GEN2 Modular System is a 3D printable storage solution offering ultimate flexibility and customization. Perfect for home users, hobbyists, and small businesses, so you can print exactly what you need and customize every piece to fit your space and style.
Unlike store-bought sets, GEN2 lets you print only what you need and expand your setup whenever you want. The drawers snap together seamlessly, giving you unlimited expansion possibilities. With the unique QuickLock mechanism, rearranging or relocating drawers is quick and effortless, so your storage can grow and adapt with you.

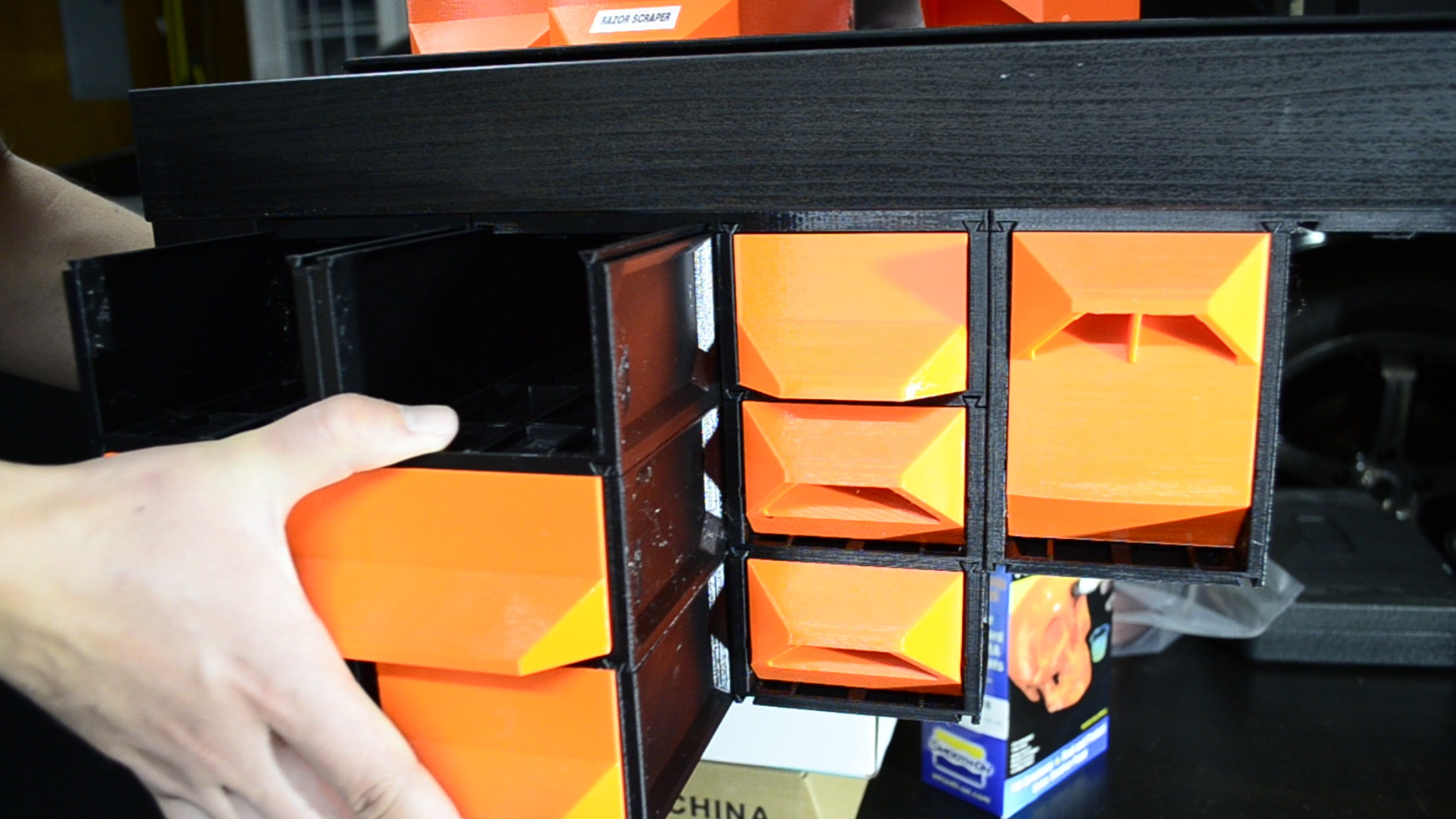

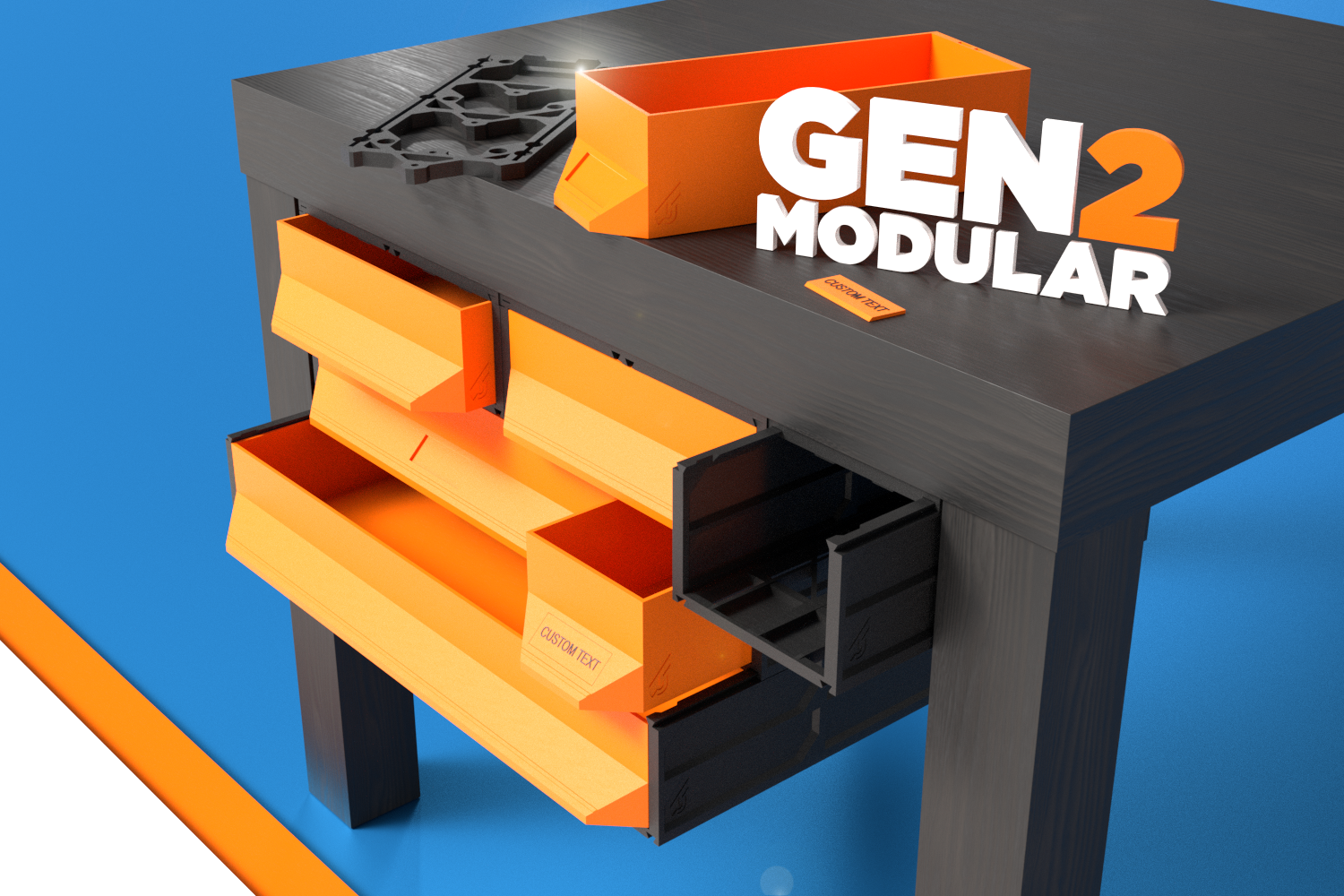

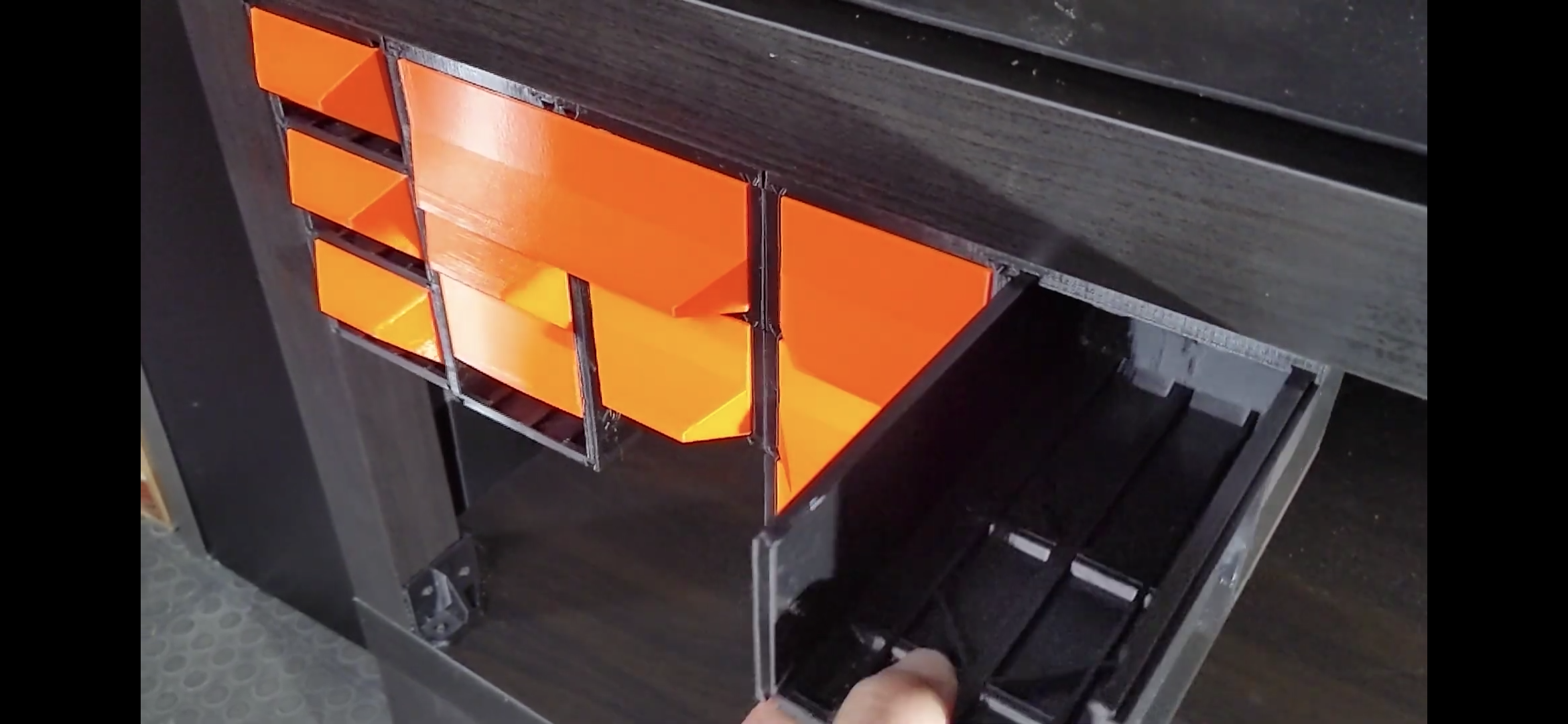

UNDER TABLE (GEN2 RAILS) Attach GEN2 drawers under any surface by installing the GEN2 RAILS. Once installed drawers can slide and lock into place, they can then be swapped out and rearrange in seconds.
See how it works: CHOOSE DRAWER STYLE (Classic vs Decor) • Classic drawers feature print-in-place handles.
• Decor drawers feature an interface for attaching customizable faceplates and handles. Faceplates can be found HERE .
Find all the 185 drawers HERE
HARDWARE Includes affiliated links to help support my projects
• Filament
- PLA ( Easy to print, works great for most parts )
- PETG ( Stronger and tougher, but can warp more )
• Screwdriver
• Magnets (Optional) : 10x2mm or 6x2mm
• M3 nuts and screws: Stainless-Steel or Steel
UNDER TABLE (GEN2 RAILS) HARDWARE
• Countersunk woodscrews: ( SAE: #6 or #8 up to 1/2" or longer ) or (Metric: 3.5x16mm or longer)
• Drill bit that is smaller diameter than the wood screws ( My Recommendation )
• Pen, Marker, or Scratch Awl (for installing under tables)
INSTRUCTIONS 🔧 Visit Jerrari3d.com for Step-By-Step Instructions
For basic instruction on assembly please check out the above video
RECOMMENDED PRINT SETTINGS Filament: PLA (PETG or ABS for heavier duty storage)
Nozzle Size: 0.4mm
Print Height: 0.2-0.35mm
Infill: 10-20%
