Description

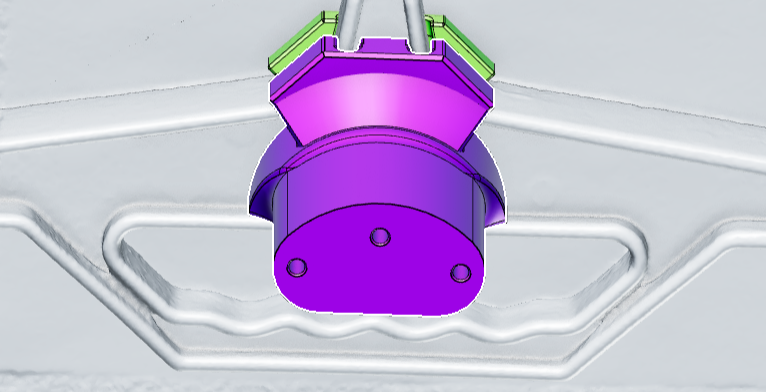

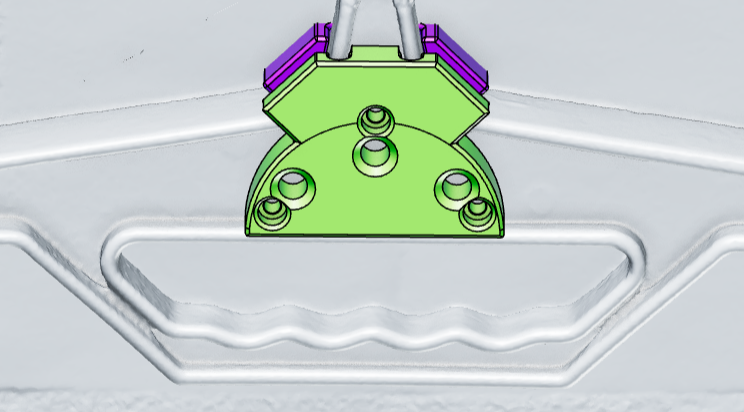

Tough Hook mount to Motorcycle Helmet Hook
(Love my Tough Hook)
https://a.co/d/5RDsxH3
Here is the Helmet Hook HEAD that will mount to this.
https://www.printables.com/model/1354553-motorcycle-helmet-hook-head-shaped-kind-of
Printing setup.
Material used - 3D Fuel Pro PCTG (re-Fueled)
Bottom layers - 6
Top layers - 6
Vertical layers - 6
Infill - 25% Gyroid.
MISC hardware ordered from McMaster CARR.
Parts listed below.
QNTY 3 - 18-8 Stainless Steel Tapered Heat-Set Insert for Plastic
M5 x 0.8 mm Thread Size, 11.1 mm Installed Length (PN-97163A163) https://www.mcmaster.com/97163A163/
QNTY 3 - 18-8 Stainless Steel Socket Head Screw
M5 x 0.8 mm Thread, 50 mm Long (PN-91292A196) https://www.mcmaster.com/91292A196/
QNTY 3 - 18-8 Stainless Steel Socket Head Screw
M5 x 0.8 mm Thread, 25 mm Long (PN-91292A129) https://www.mcmaster.com/91292A129/
