Dupont connector bridge
Description

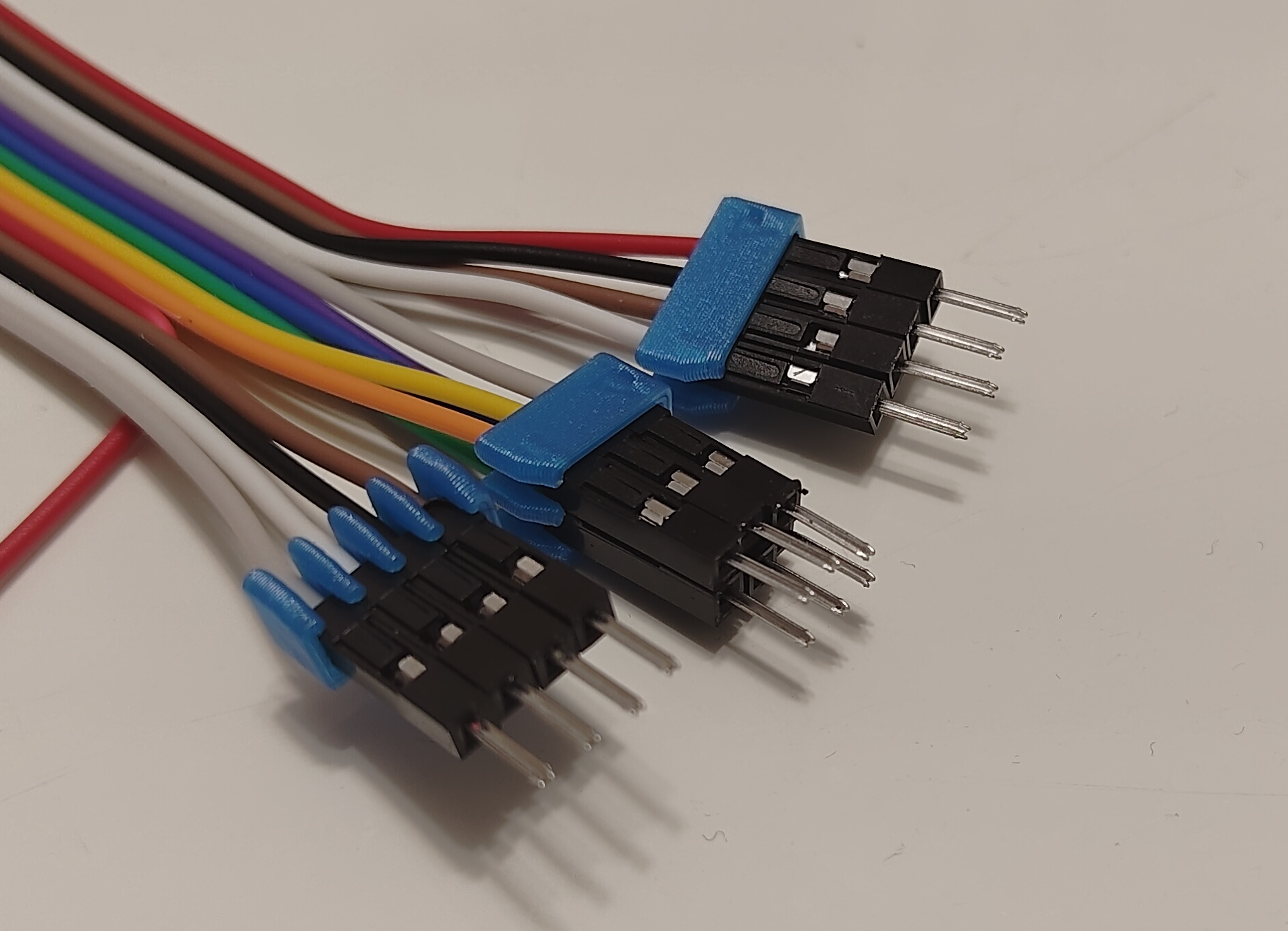

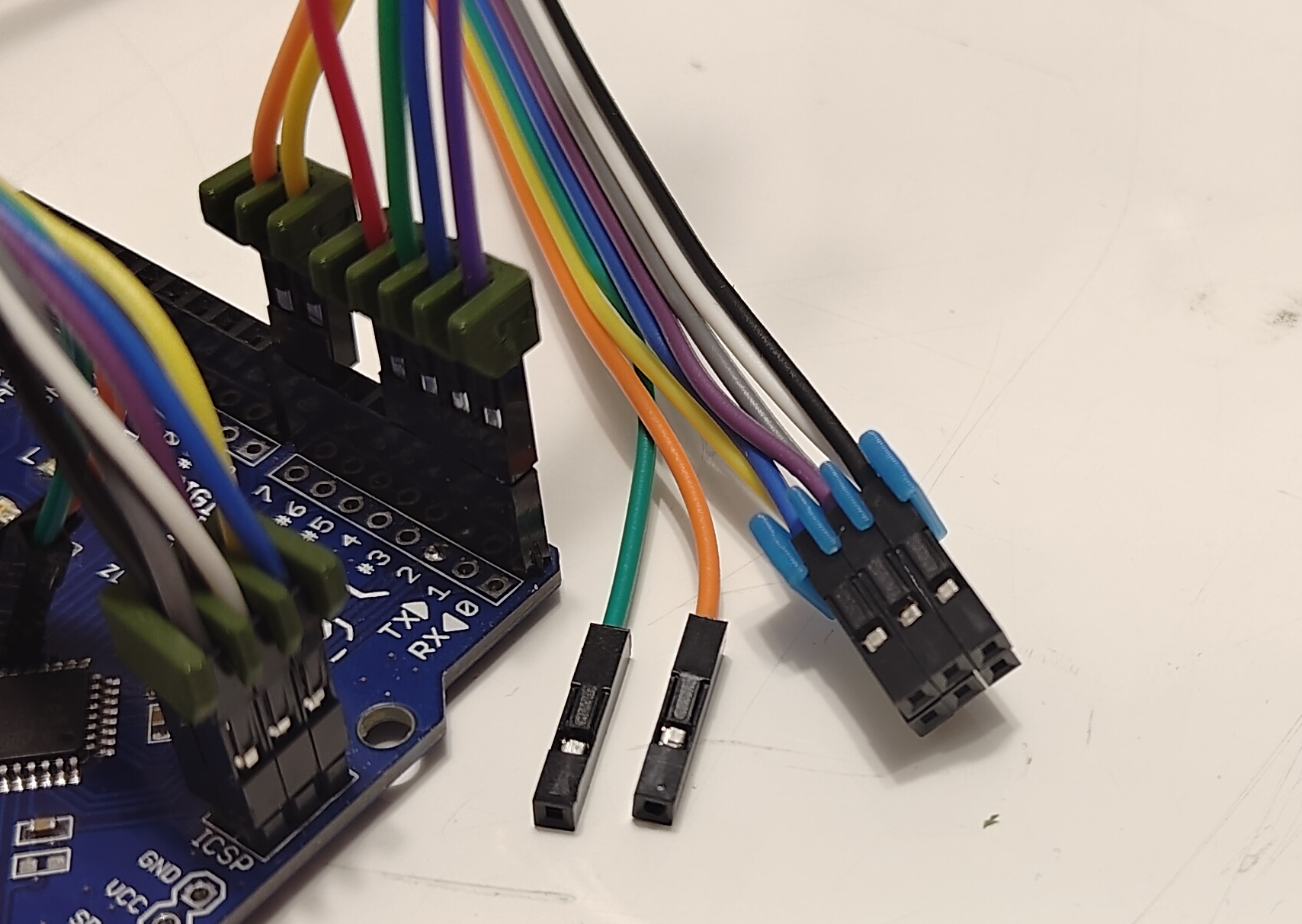

Combine and rearrange single- or multiple-contact Dupont connectors into a same-pitch bridge.
Now with multiple row support!
The assemblies can be a bit tight, but still much easier to modify than re-populating a dedicated housing.
If you're having trouble, try inserting middle contacts last. Alternatively, try transposed versions -- those are looser, but work surprisingly well!
The resulting connector is reasonably compact and has a pin 1 mark.
Originally made for easily switching JTAG emulator between different projects with different pinouts, but should be pretty universal.
License
Files
Model files
Download all files
2-contacts.3mf
3-contacts.3mf
4-contacts.3mf
5-contacts.3mf
6-contacts.3mf
7-contacts-use-freecad-file-for-more.3mf
2x1-contacts.3mf
3x1-contacts.3mf
3x2-contacts.3mf
4x1-contacts.3mf
4x2-contacts-use-freecad-file-from-11-folder-for-more.3mf
5x1-contacts.3mf
6x1-contacts.3mf
7x1-contacts.3mf
1x2-contacts.3mf
1x3-contacts.3mf
1x4-contacts.3mf
1x5-contacts.3mf
1x6-contacts.3mf
1x7-contacts-use-freecad-file-for-more.3mf
2x2-contacts.3mf
2x3-contacts.3mf
2x4-contacts-use-freecad-file-for-more.3mf
