Travel Tic-Tac-Toe V2

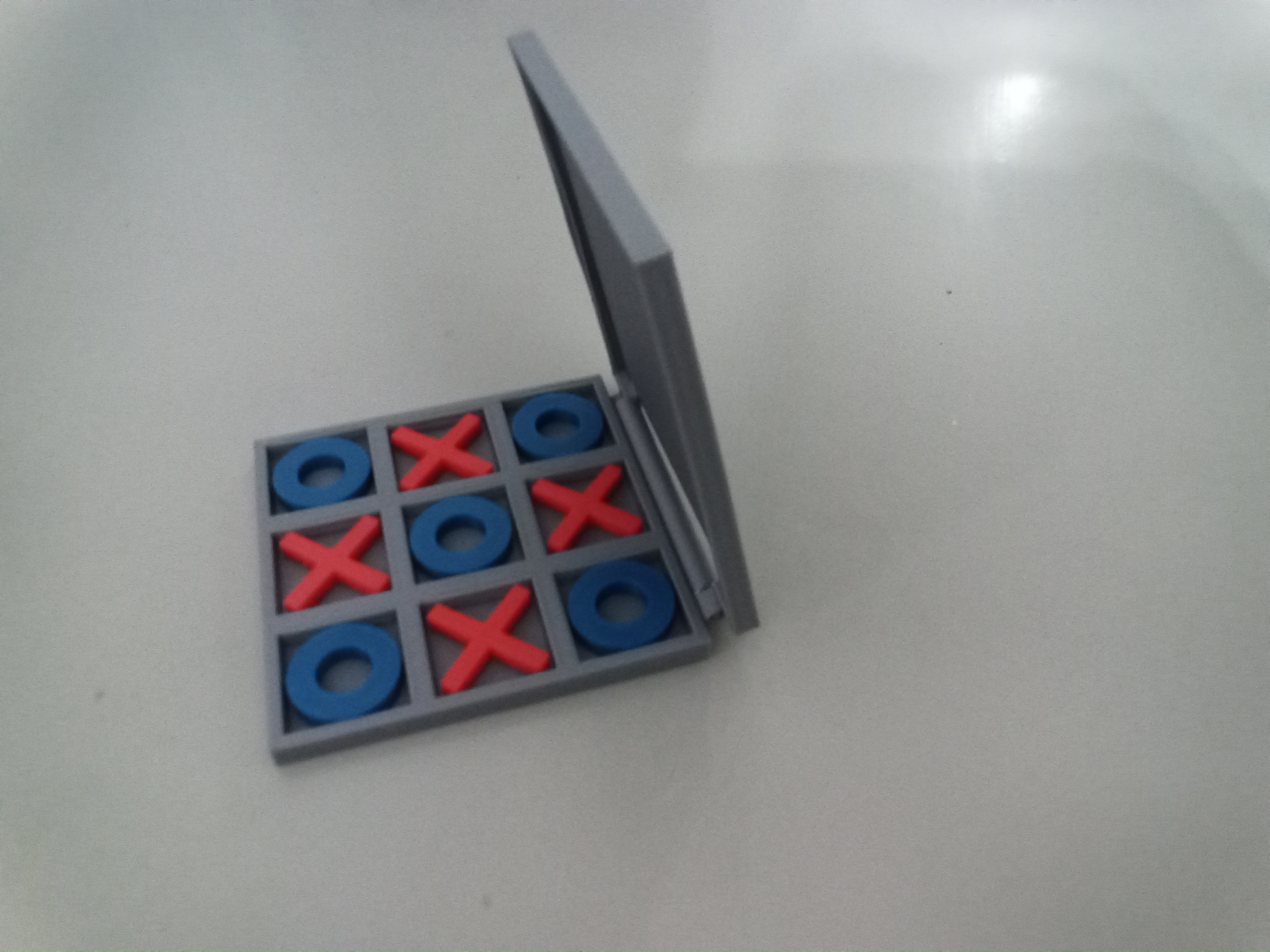

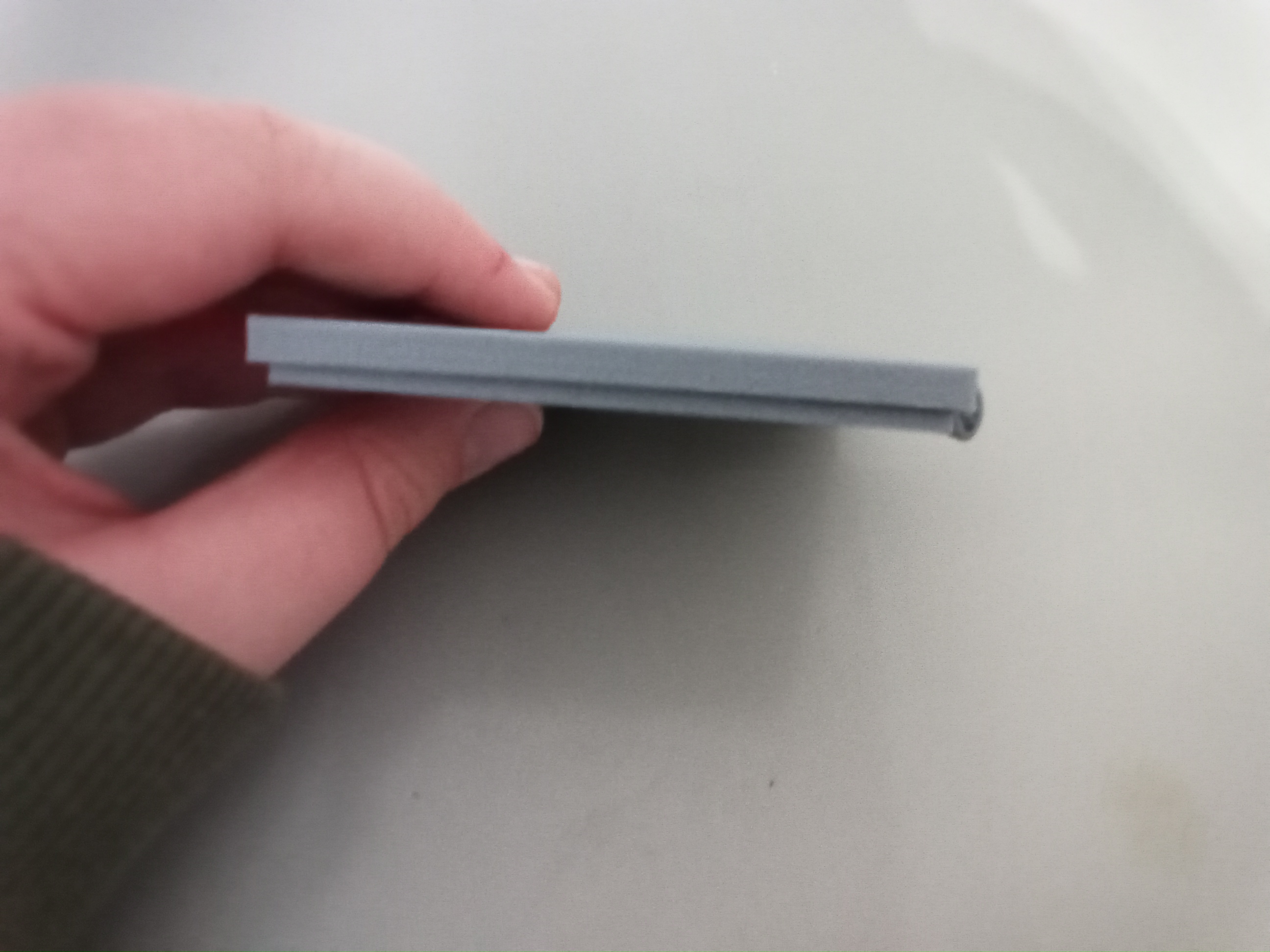

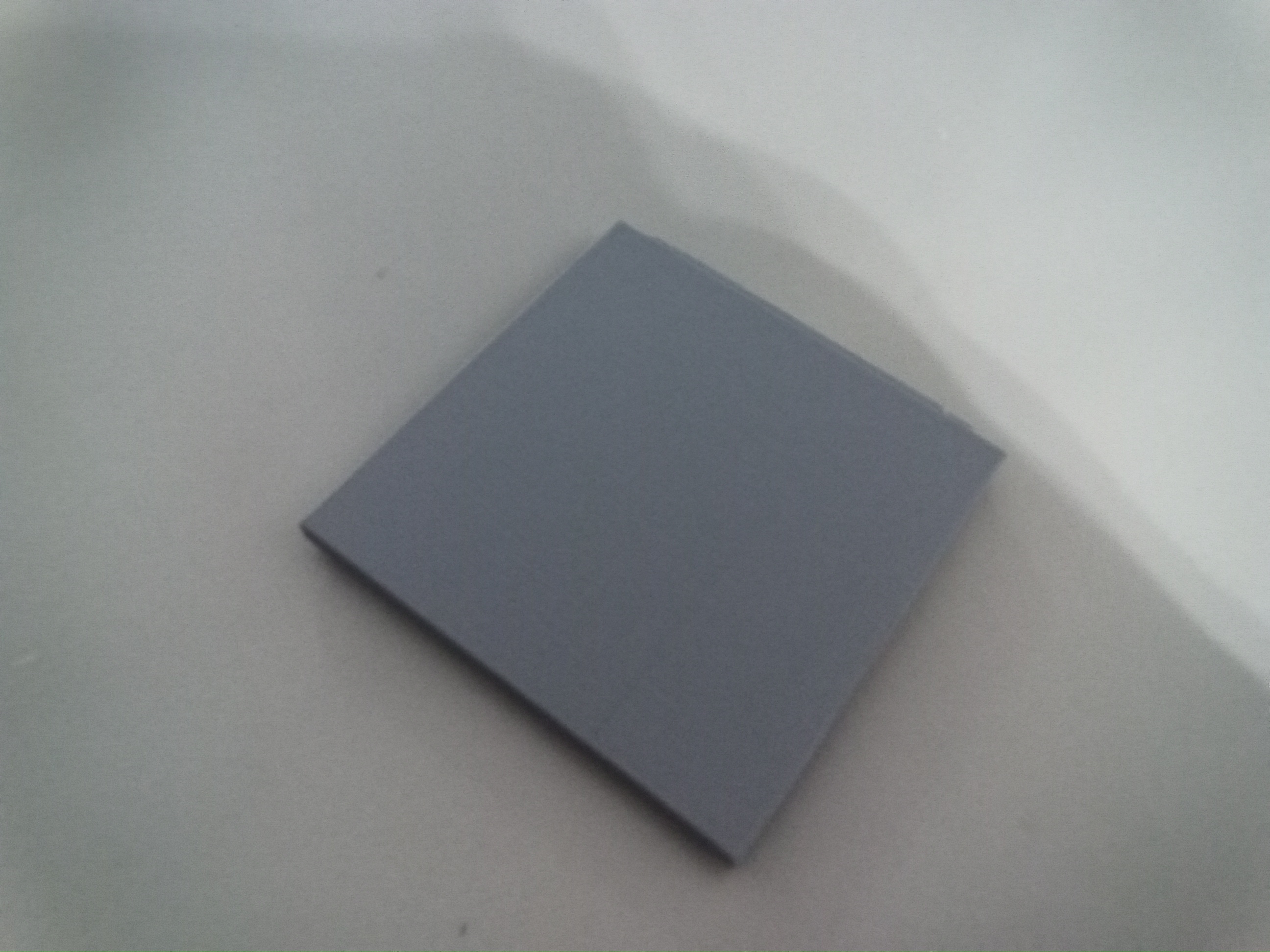

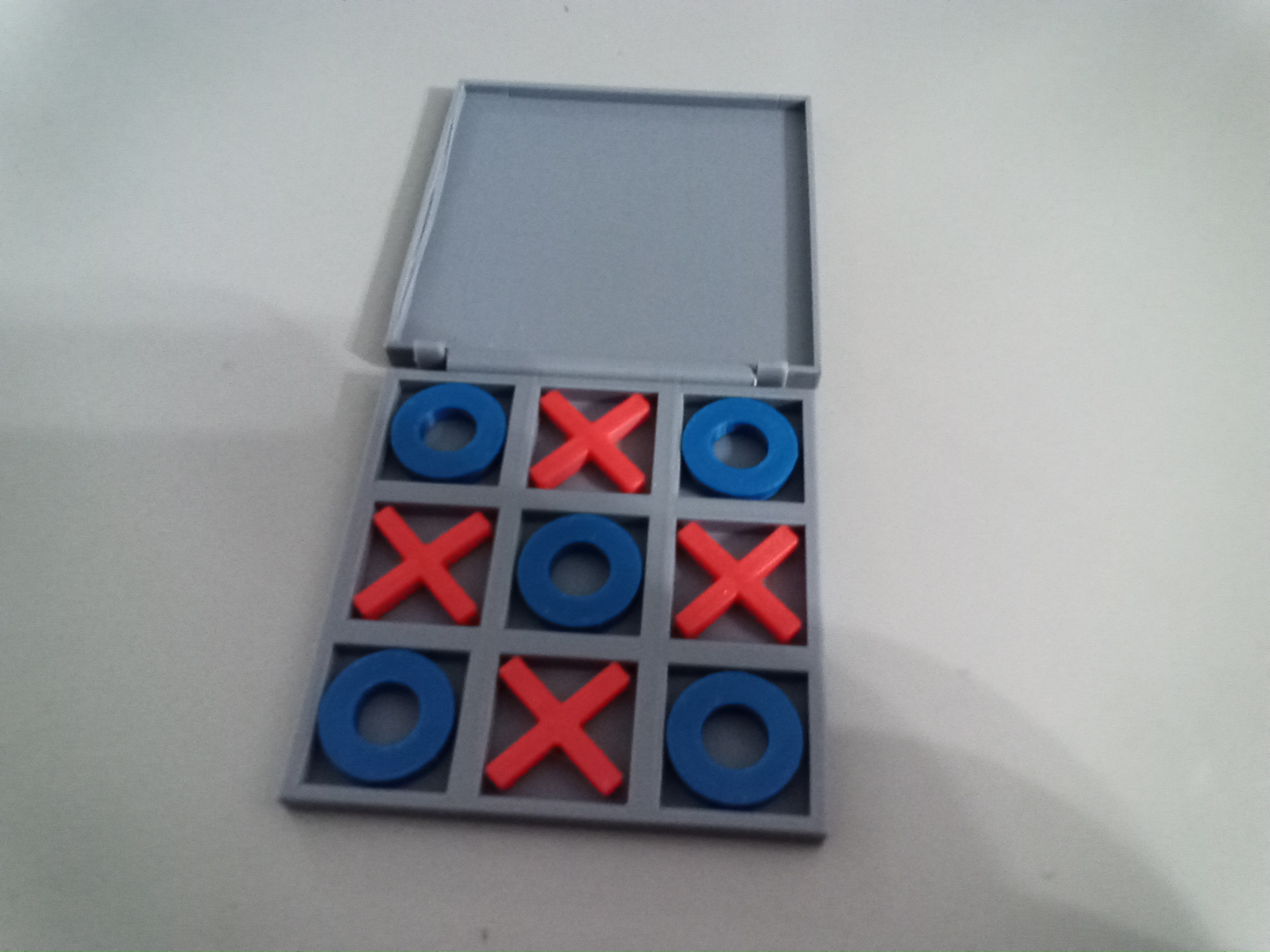

This is a compact, pocket-size Tic-Tac-Toe board designed with a custom printed hinge made for 1.75 mm filament. The board folds closed for easy storage and portability. This version uses an oval-shaped hinge slot that allows the board to slide slightly up and down so both halves can align and close properly. The hinge is assembled using a piece of standard 1.75 mm filament as the hinge pin. Features: - Compact, pocket-friendly size - Foldable design - Custom printed hinge - Uses standard 1.75 mm filament as hinge pin - Simple, clean design Assembly: - Print the model. - Insert a short piece of 1.75 mm filament through the hinge holes. - Trim excess filament and lightly melt or secure the ends if desired. This model is designed to be simple and functional. It’s great for testing print tolerances and small moving parts. Enjoy! Note: Print the board and lid on it's side (the hinge should face up and down, not left to right when printing) so the hole on the hinge can be printed without collapsing. USE SUPPORTS Tip: Use Glow in the Dark filament for the board and pieces so you and another person can play at night, when the lights are out, or for fun. I don't care. Another note: The brightness of Glow in the Dark filament is brightest for 1-2 hours. Unless you are playing 2 hour games, you should be fine. The final note: If the 2 halves are stuck, then use your fingernails or something thin to pry it open. The ACTUAL final note: Please check out my other models! I spent a lot of time designing them.
